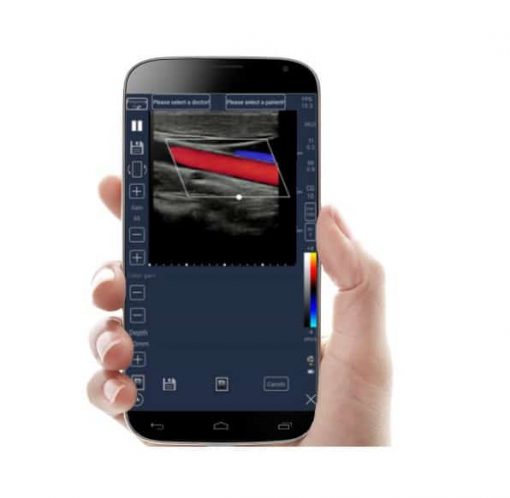

C-Scan is a handheld, pocket-sized ultrasound tool that provides real-time grayscale anatomic and color Doppler blood flow images with touch screen.
It is the preliminary screening tool for you ” from patient to patient ” within your primary, critical, or specialty care clinical environment.
Product Features
Clinical Applications:
Anesthesia
Line Placement (CVC, PICC)
Pain management
Point-of-Care(POC)
Vascular Access
Primary Care
Emergency & ICU
General Practitioners
Urological
OB/GYN
Abdominal
Pediatric Scanning
Benefits:
Detect pericardial effusion, chest fluid or internal bleeding at ER or in ambulance, enabling prompt initiation of treatment
View fetus as they grow
Detect fetal heart beats
Monitor the amount of Amniotic fluid during delivery
Find plaque in Carotid, avoid stroke before it strikes
Place lines in veins with visual confidence
Find nodules in thyroids, livers or breasts during screening
Monitor stones in kidneys, gall bladders and bladders
Verify bone fractures without X-ray
Product Specification
Product Description Handheld Ultrasound Scanner
Monitor: 6 inch LCD high-resolution (1280*720) full touch screen
Probe Type 128 elements
Frequency Convex array 2-5MHZ / Linear array 5-10MHZ
Displaying Mode B, M,C,B+B,B+M
Cine-loop 1024 Frames
Frame Rate Convex:16fps / Linear:24ps
Depth Convex:≤200mm / Linear: ≤70mm
Grayscale 256 level
Gain Convex: 0~150dB adjustable
Linear: 0~120dB adjustable
Image Processing Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc.
Power Built-in battery(5400mAh) to support 2h for continuous scanning
Image Format JPEG, DICOM
Language Over 60 different language including English, Spanish, German etc.
Measurement Length, Area, Arrow, Angle, Perimeter, Text.
Camera 5M auto focus
Wireless Connection WIFI, BLUETOOTH,3G/4G(LTE,WCDMA/EDGE/GPRS/GSM)
Memory 64GB
Connection Interface Micro USB2.0, HDMI,3.5mm headphone jack,
Operating System Android
Printer WIFI printer
File Management Patient file & image file
Cloud Cloud image storage, cloud file management, standard API & SDK interface, Information sharing platform
Technical Training Online and offline tutorial, self-built online training material
Remote Software Update Yes
Size 165*85*23mm
Weight Convex:570g / Linear:550g
Related Accessories
Standard:
The Device Ultrasound probe ….1Pcs
USB wire ……………………………… 1Pcs
Adapter ………………………………… 1Pcs
Carrying bag ………………………… 1Pcs
Cleaning Cloth ………………………. 1Pcs
Options:
7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
3.5MHz micro-convex probe
WIFI printer
