Name: Vortex Mixer
SKU: 83009
Availability: InStock

Vortex Mixer

Features

LED display for easy reading of time and speed

Wide speed range of 0-3000rpm

Orbital diameter of 6mm

Touch mode, timer mode and continuous mode are available

Brushless motor and sturdy iron/aluminum casting base

Low operation voltage (12V) for full protection

Excellent mixing capability can make full 50ml containers mix within 3 seconds

Perfect dynamic balance design can eliminate any movement in mixing

Various applications with different interchangeable attachments

Power supply is CE, cULus, CCC, SAA and FCC certified

Specifications

Model	MI0101002D Vortex Mixer
Operation Mode	Continuous / touch operation
Type of movement	Orbital
Orbital diameter	6mm
Speed range	0-3000rpm
Speed display	LED digital
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 21
Voltage	200 – 240 / 115 / 100 V compatible
Frequency	50/60 Hz
Motor rating input	30W
Motor rating output	15W
Dimensions (W x H x D)	107x146x166m
Weight	3kg

Accessory

Part No.	Description
MI0101002-31	Test Tube Attachment, 54 x Φ6mm, used with MI0101002-14
MI0101002-32	Test Tube Attachment, 18 x Φ10mm, used with MI0101002-14
MI0101002-33	Test Tube Attachment, 12 x Φ12mm, used with MI0101002-14
MI0101002-34	Test Tube Attachment, 8 x Φ16mm, used with MI0101002-14
MI0101002-35	Test Tube Attachment, 8 x Φ20mm, used with MI0101002-14
MI0101002-36	Microtiter plate attachment, used with MI0101002-14
MI0101002-14	Universal top plate
MI0101002-37	Erlenmeyer flask attachment 100-250ml, used with MI0101002-14
MI0101002-13	Standard top

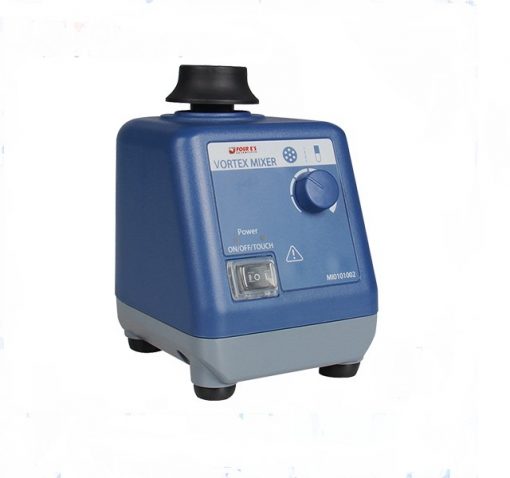

Product Show
