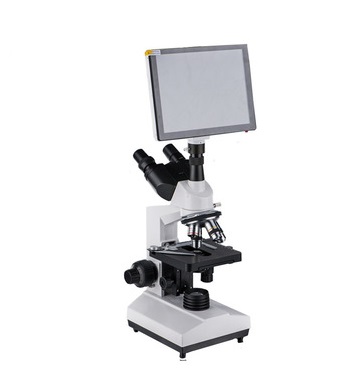

Z110-THD9 Biological Quality Lab Trinocular Compound Microscope with Digital Screen

Z110-THD9 Biological Quality Microscope Lab Trinocular Compound Microscope with Digital Screen

1. Achromatic objective: 4x,10X,40X ( spring ),100X( spring,oil )
2. Wide Field Eyepiece :WF10X,(WF16X optional)
3. Viewing head: compensation free trinocular head
4. Nosepiece: quadruple
5. Stage: double Layer Mechanical Stage Size 140*140mm, moving range 75*45mm
6. Focusing: coaxial coarse and fine adjustment , focusing range 30mm, interval 0.002mm
7. Condenser: N.A=1.25 Abbe condenser &Iris diaphragm
8. Illumination, Halogen Lamp or LED
9. Power : AC Input 220V or 110V,DC ouput 6V
10. 9.5 inches electronic eyepiece.
11. Optional: 0.1 Mega-14 Mega pixels CCD camera or Electronic eyepiece
